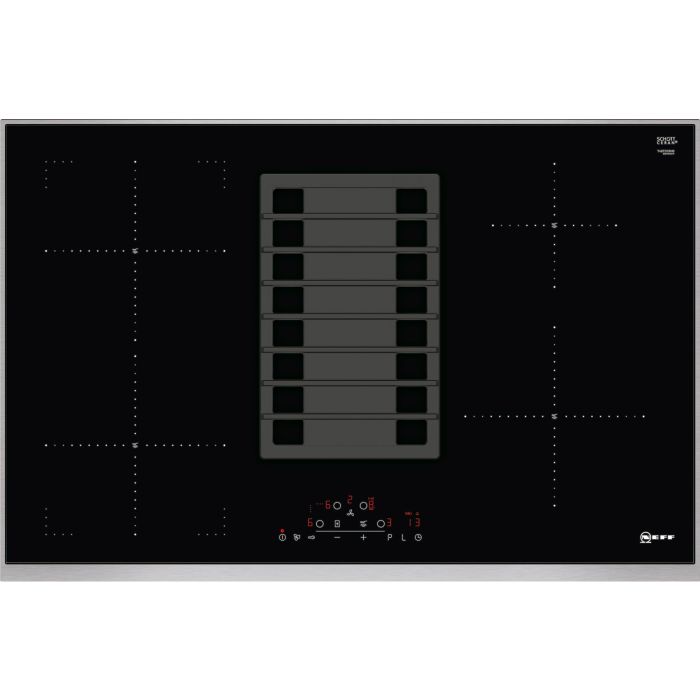

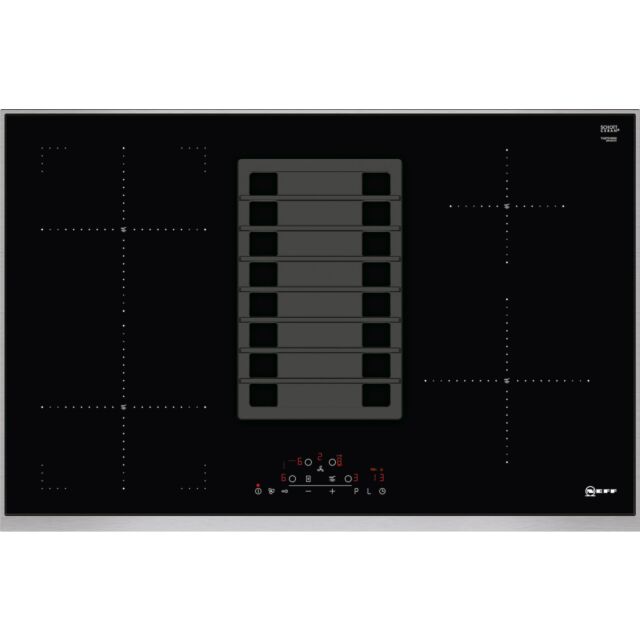

Neff T48TD1BN0 Hob Venting Induction 80Cm

Neff T48TD1BN0 Hob Venting Induction 80Cm

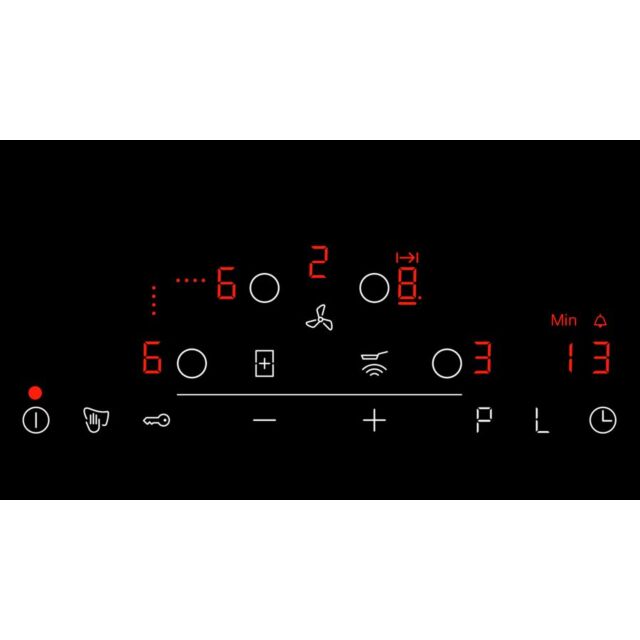

Control
•Touch control
•Frying Sensor:4 frying levels

Special features
•Combi zone
•4 zone induction hob
•Variable 17-stage power settings for each zone
•ReStart function
•QuickStart function
•LED display for each zone
•Timer with automatic shut off for all zones
LED timer for each zone with switch off function and acoustic signal
•Boost setting for all zones

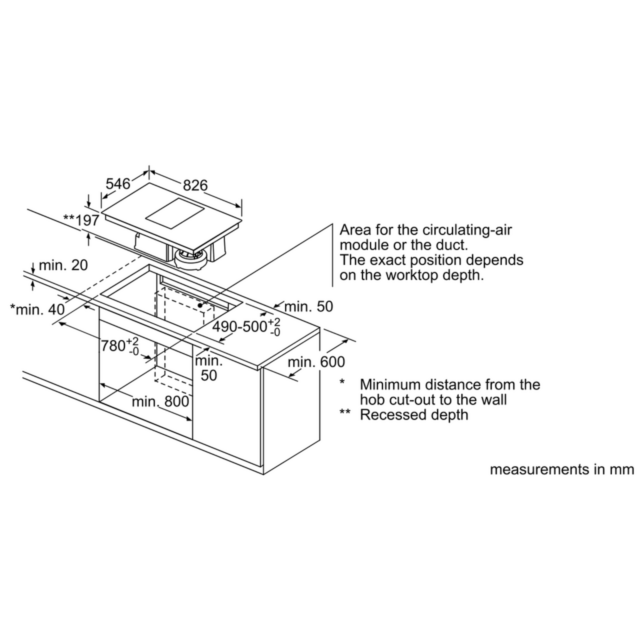

•Measurement: (H/B/T) 197 x 826 x 546 mm
•Connected load: 6.9 kW
•Voltage: 220 - 240 V
•Cable included in packaging
•Length wire connection: 110 cm
•Individual energy consumption display
•2 stage residual heat indicators
•Automatic pan recognition
4.6kW power output (20A); current management options for 16A, 13A or 10A connection
Safety cut out facility
Control panel lock
Control panel suspension
•High-performance blower, Efficient BLDC-technology
•Energy Efficiency Class: A
•Average Energy Consumption: 53.5 kWh/year
•Blower Efficiency Class: A
•Grease Filtering Efficiency Class: B
•Large-scale stainless-steel grease filters with 12 layers for high grease filtration efficiency (up to 90% odour reduction)
•Noise min./max. Normal Level: 39/69 dB
•Ducted extraction kit needed (accessory Z8100X0)
•For recirculated extraction cleanAir recirculating kit (accessory Z8200X0) needed
•Fully-automatic extraction functionality with climateControl sensor
•Fully-automatic fan speed level control or optionally manual control by user
•9 speeds plus 1 intensive
•Automatic 30 minutes after running

Technical information
•Cooking zones: 1 x Ø 210 mm, 2.2 KW (max. Power levels 3.7 KW) Induction; 1 x Ø 210 mm, 2.2 KW (max. Power levels 3.7 KW) Induction; 1 x Ø 145 mm, 1.4 KW (max. Power levels 2.2 KW) Induction;1 x Ø 180 mm, 1.8 KW (max. Power levels 3.1 KW) Induction
•Extraction rate according to EN 61591:
- min. Normal use 150m³/h
- max. Normal use 550 m³/h
- Intensive setting 690 m³/h
•Noise level according to EN 60704-3 und EN 60704-2-13 exhaust air:
- Min. normal use: 39 dB(A) re 1 pW (25 dB(A) re 20 µPa sound pressure)
- Max. normal use: 69 dB(A) re 1 pW (55 dB(A) re 20 µPa sound pressure)
- Intensive: 76 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)
•Performance in re-circulated extraction:
- min. normal setting 139 m3/h
- max. normal setting 557 m3/h
- Boost-/Intensive setting 618 m3/h
•Noise level in re-circulated extraction:
- min. normal setting 42 dB(A) re 1 pW (31 dB(A) re 20 µPa sound pressure)
- max. normal setting 73 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)
- Boost-/Intensive setting 75 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)
•Grease filter efficiency: 90 %
•Odour reduction rate: 85 %
•Cast-iron air inlet grid, heat resistant, dishwasher safe
•Removable and detachable grease filter and liquid collector unit, dishwasher safe
- integrated stainless steel grease filters, dishwasher safe
- condensate and liquid collector unit; ca. 200ml capacity; dishwasher safe
•Polymer liquid spillover safety tank, ca. 2.000ml capacity, Twist-off lock, dishwasher safe
•Saturation indicator for cleanAir odour filter
•Suitable for ducted or re-circulated extraction (Accessory is respectively needed)
